At a recent Leica Pro Discovery Day held at Leica Store Miami, I noticed a small, unassuming looking battery charger sitting on a table – with an SL battery charging in it. This was the first time I had ever seen a third-party charging solution for SL batteries, which naturally piqued my interest. Upon closer inspection I could see it was manufactured by a company called Nitecore. And that instead of a traditional wall outlet plug, it was charging over a USB cable. Further research later on led me to their full product catalog. And as it turns out, Nitecore makes compact USB battery chargers for a wide variety of Leica camera batteries. It wouldn't be long before I had the full compliment of Leica chargers sitting on my desk for some testing.

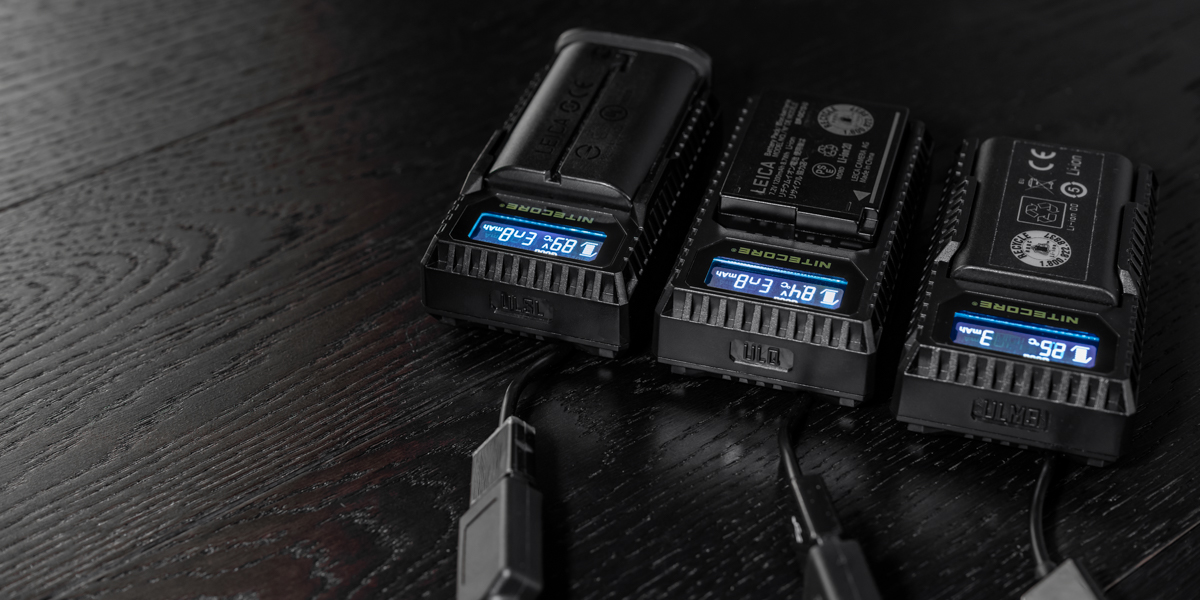

Immediately, I was struck by the small size and light weight of the chargers, especially considering they all have built-in USB cables and a small screen that conveys useful information about the battery and charging status. All five chargers are about the same size and weight, measuring in at 85 x 50 x 30 mm and weighing 50 grams. All charge one battery at a time, with the exception of the D-LUX/C-LUX charger which actually charges two batteries at once. You can take a look at the chart below to see if Nitecore makes a charger for your Leica camera:

Compatibility Chart

ChargerCompatible CamerasBattery Model
Nitecore USB Battery Charger ULSLSL (Typ 601)BP-SCL4
Nitecore USB Battery Charger ULQQ (Typ 116), CL, V-LUX (Typ 114), V-LUX 4BP-DC 12
Nitecore USB Battery Charger ULM240M/M-P (Typ 240), M Monochrom (Typ 246), M (Typ 262), M-D (Typ 262)BP-SCL 2
Nitecore USB Battery Charger UL109D-LUX (Typ 109), C-LUXBP-DC15
Nitecore USB Battery Charger ULM9M8, M8.2, M9, M9-P, M Monochrom, M-EBLI-312

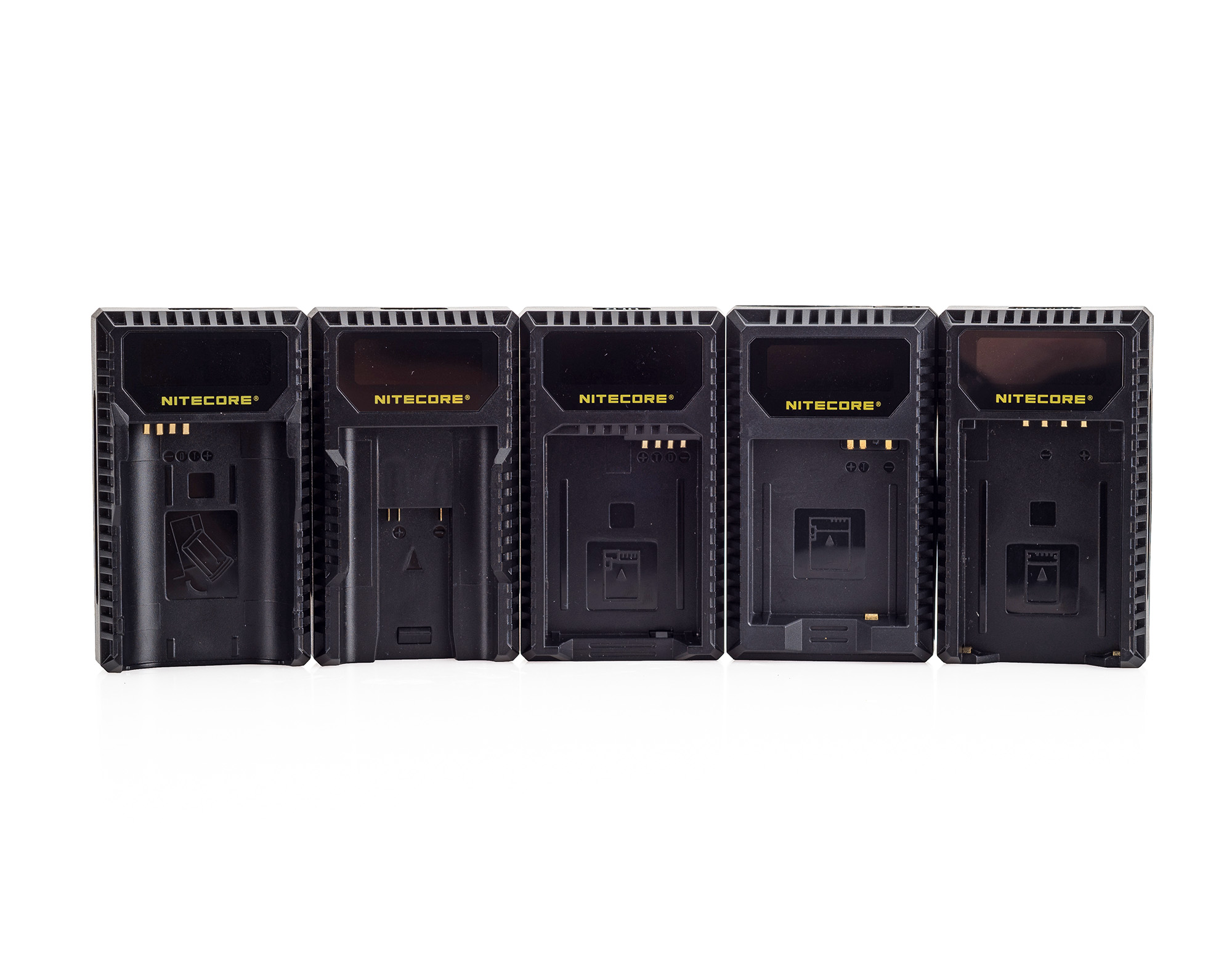

The Nitecore chargers for Leica cameras.

USB Connection for maximum flexibility

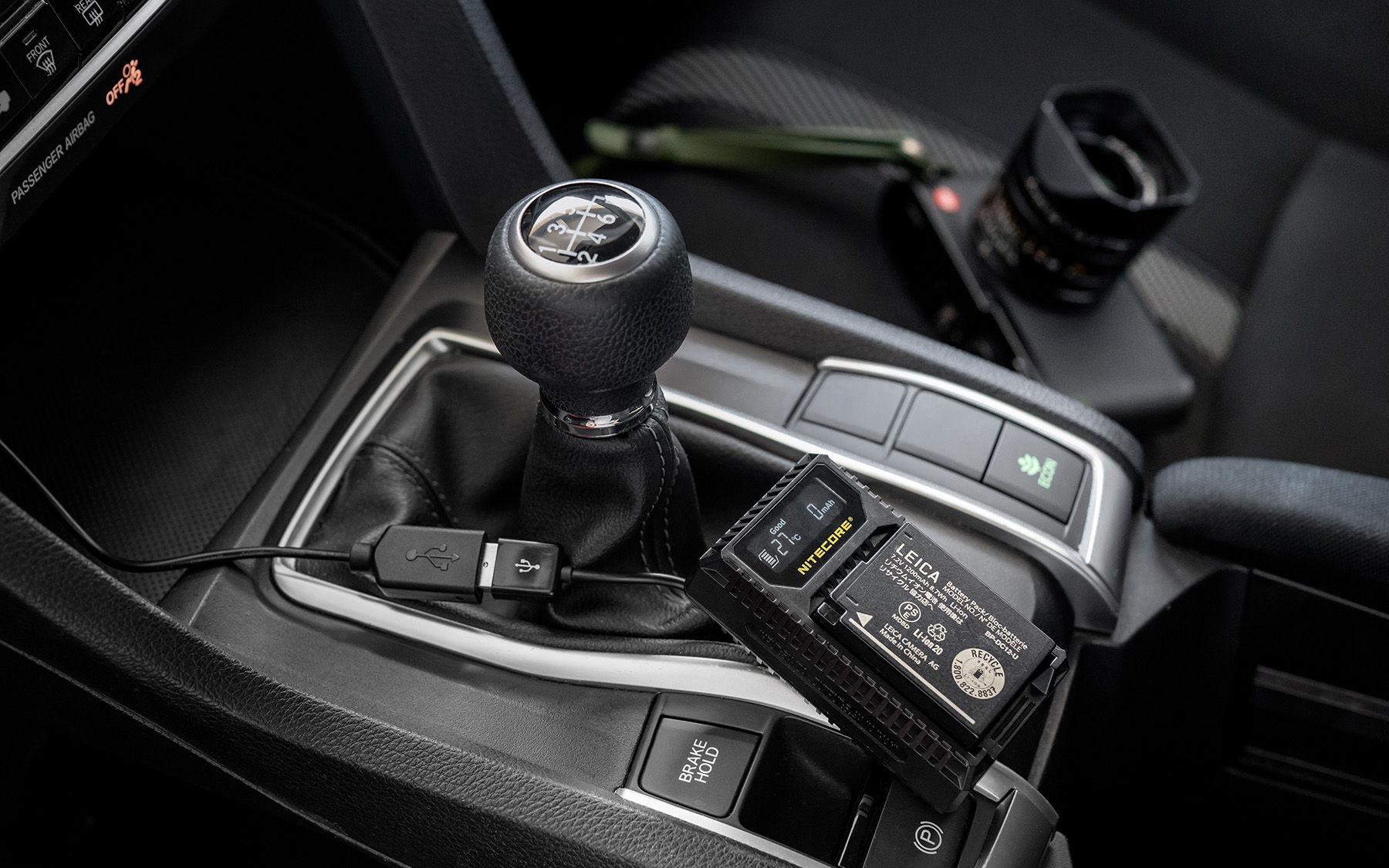

Aside from their small size, by far the most noteworthy feature of the Nitrecore chargers is that they charge over USB versus using the standard “figure eight” wall outlet cord, or flip-out prongs, that Leica's own chargers use. This means you can charge up your batteries from a portable battery power bank, similar to how you may charge a smartphone on the go. It also works with solar chargers and you can even charge from a computer's USB port. Or a USB port in your car (or on an airplane). This flexibility is incredible for travel and landscape photographers, who may be miles away from a power outlet when they are out shooting. In theory, with a good-sized power bank, two batteries could last for days and days of shooting without ever needing a wall outlet.

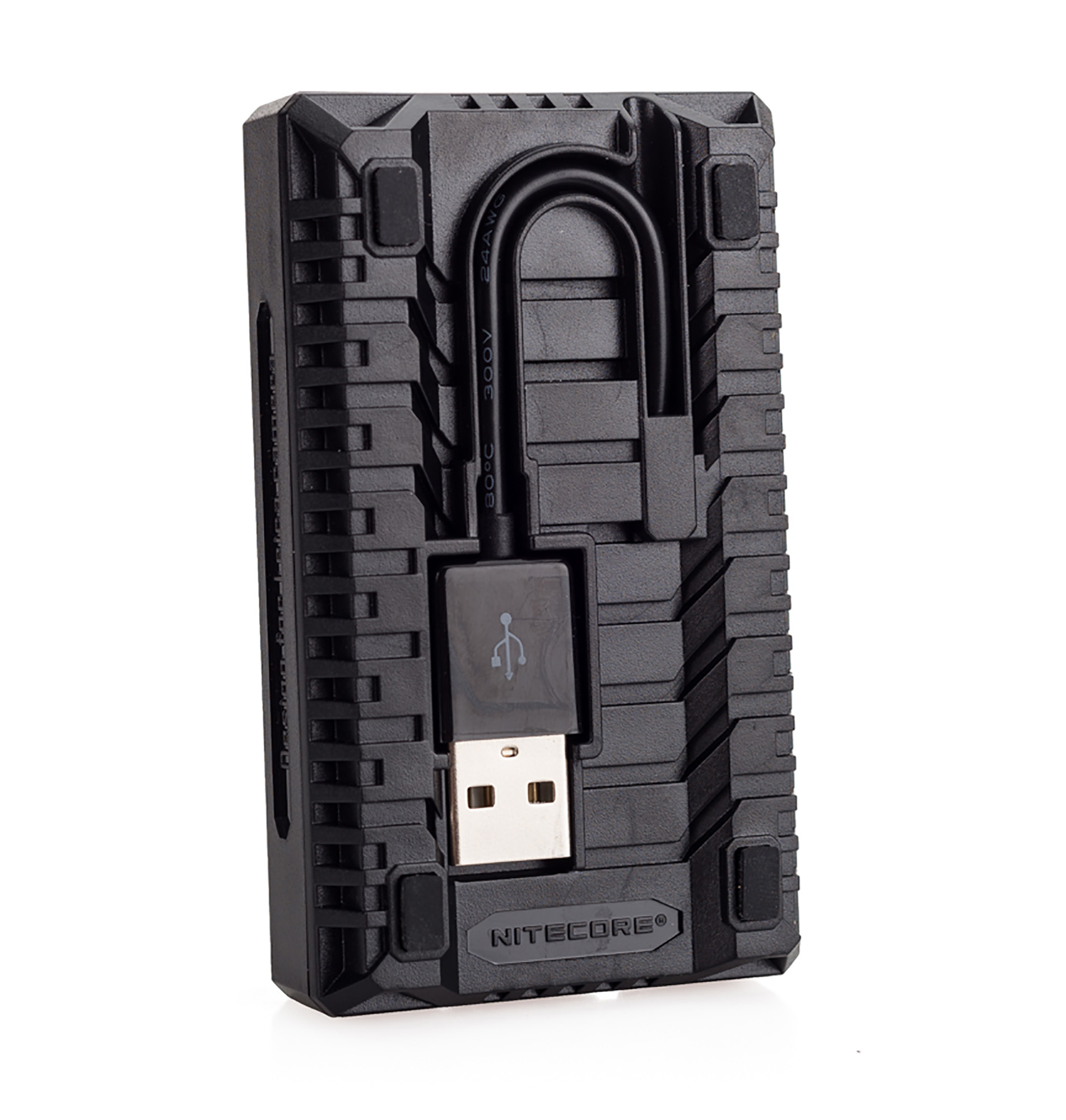

Each charger features a built-in USB cord that tucks away neatly when not in use.

Of course, charging over AC wall power is the fastest and that is easy to do here. I would say most people I know have at least one, if not a small collection of USB outlet adapters. They come with just about every smartphone, tablet or other electronic device with a battery, and they'll all work with the Nitecore chargers. Results may vary in terms of charge times (more on that later) though. Nitorecore makes their own USB power adapter if you need one. Do note that the built-in USB cord is quite short, so a USB extension cable is recommended most of the time if you are charging from AC power.

Useful information

Leica's own battery chargers lack any meaningful information about the battery or the charge status, beyond charging, 80% charged, and fully charged. The Nitecore chargers all have a small screen which provides much more detailed information. The screen cycles automatically between two different displays, the first of which you can see below:

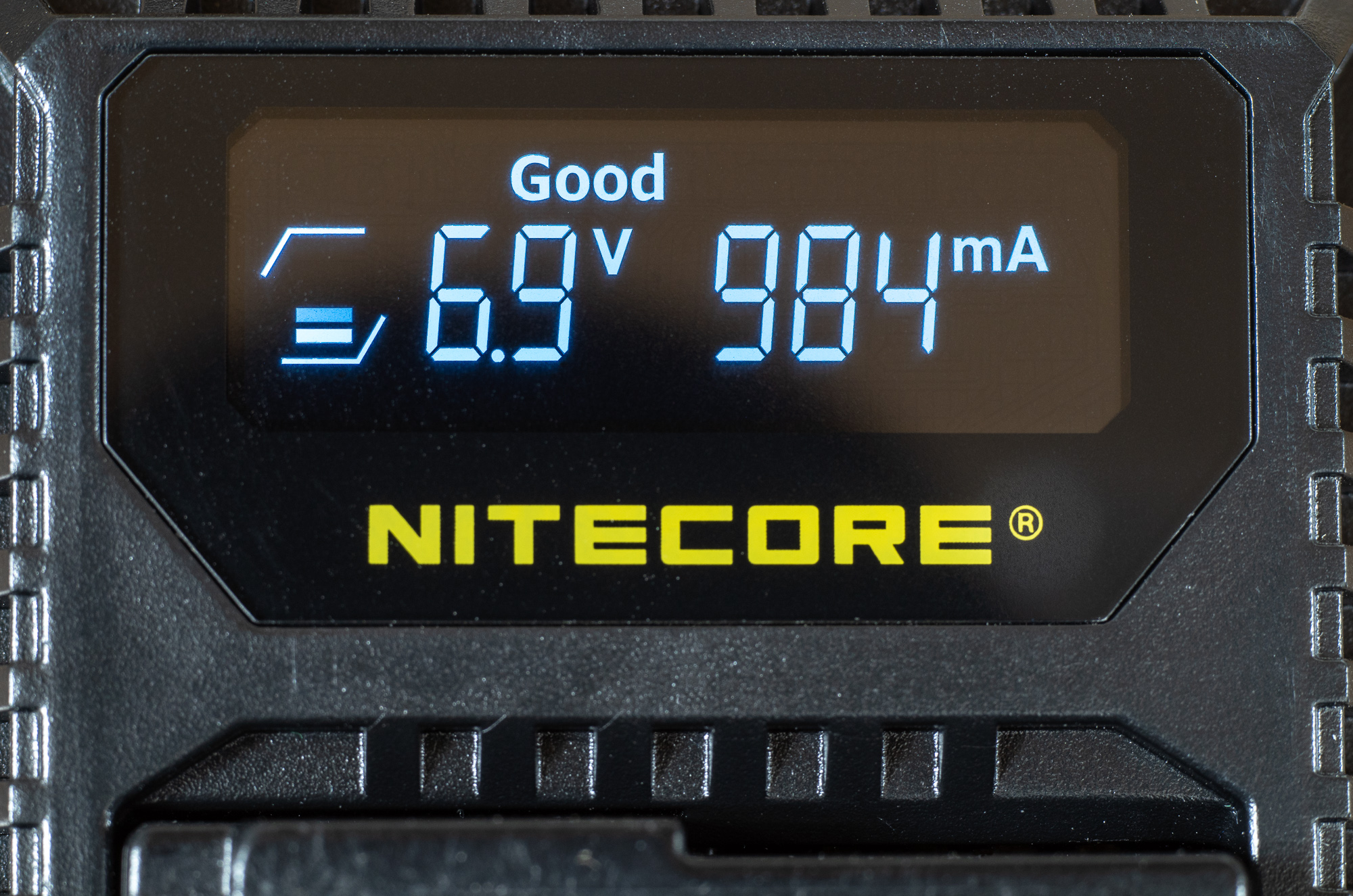

Here I am using the Nitcore ULQ charger for Leica's BP-DC12 battery used in the Q, CL and V-LUX. Starting from left to right, the first thing you see is a series of small “blocks” inside brackets. That is the battery charging status bar and is visible on both display screens.  The battery is fully charged when the blocks reach the top bracket. The word “End” will also appear on the right side of the screen when charging is complete.

Next, we see the voltage the battery is putting out, 6.9 volts in this case. Then we see a reading of 984mA which is how much current is flowing into the battery through the charger. With Nitecore's USB outlet adapter I am nearly at the charger's maximum potential mA rating of 1000mA. Using an iPhone power adapter, for example, I maxed out around 700mA. But, with a larger iPad adapter I could get close to 1000mA. However, with an older, small power bank I never saw more than 100mA. The more current flowing, the faster the battery will charge. Above those readings we see the word “Good” which is the battery's health. “Good” represents the best possible rating. Below that would be “Normal” then “Poor.” If you see Poor, best to dispose of the battery or at least relegate it to backup status.

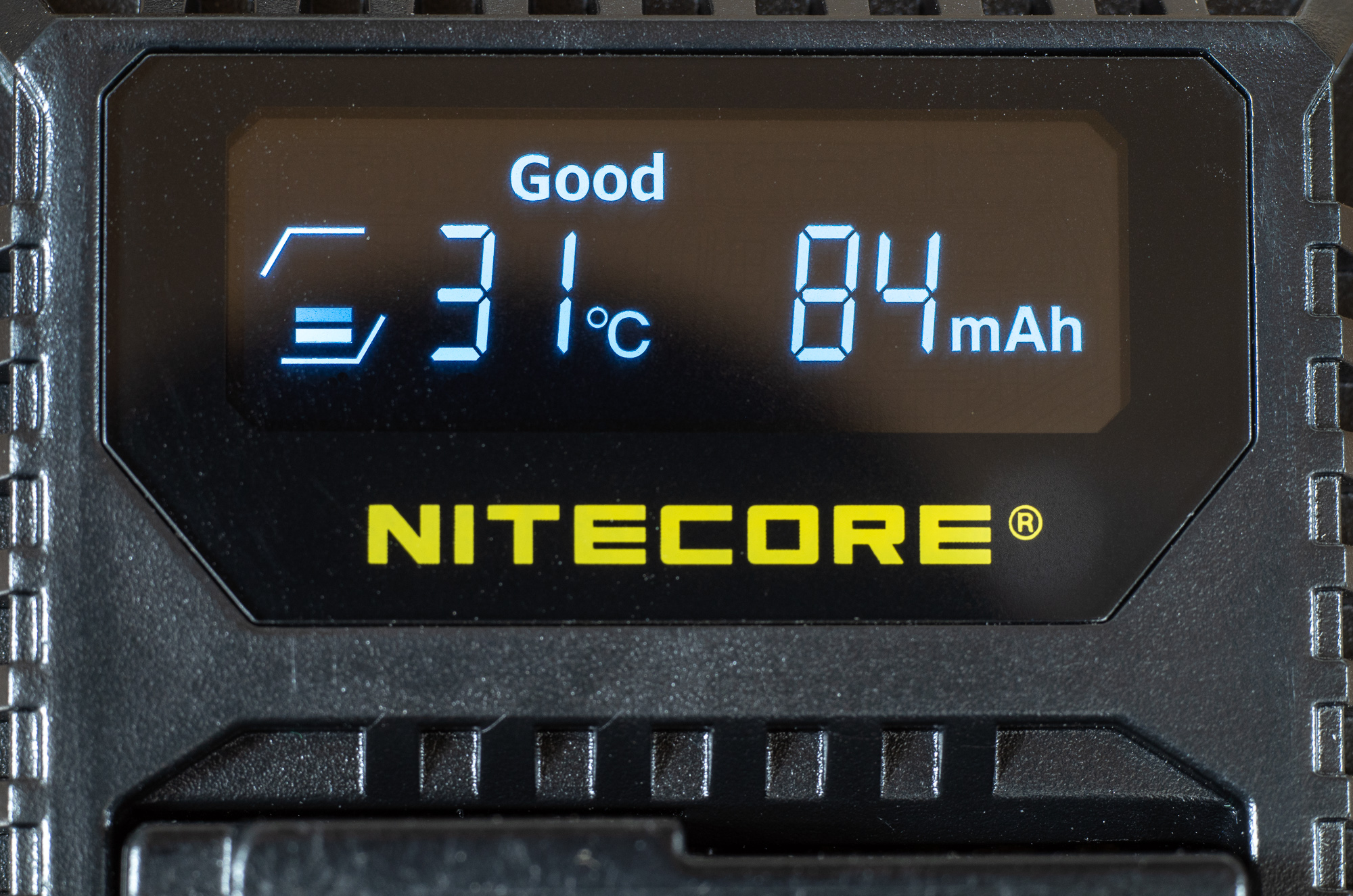

The second display cycled in still shows the charging status bar on the left, and the battery health above. However, now we see the current temperature of the battery (31 degrees Celsius when I took the photo) and next to that, a measurement of how much charge has been sent to the battery – 84mAh in this case. Do note that this number resets to zero when you unplug the charger or remove the battery.

Obviously this is FAR more information than any of the Leica chargers provide. The “battery health” display alone is a killer feature, letting me know when it's time to replace a bad battery. Plus, I'm able to see how much current is flowing, so I know the quality of the power source. All Nitecore chargers are designed to automatically stop the flow of current when the battery is fully charged as well. So, I never have to worry about overcharging.

Final Thoughts

Needless to say, these will be my new “go-to” chargers for all future adventures. Their small size and flexibility will prove quite useful. And while not available at the time of publication, Nitecore is currently working on an M10 charger. Hopefully we'll see before the year is out.

All five chargers are priced at $60 each. You can check out the full range online here:

Nitecore Battery Chargers

October 9, 2018 Update

There is now a charger for the M10! Check it out here: It’s Here! The Leica M10 USB Dual Battery Charger by Nitecore

10 Responses

  1. Daniel Forster

    Excellent for my Q. Strangely, no M10 battery charger ? does anybody know if it is in the pipeline ?

    Reply
  2. David Heintz

    Sorry, but this is not “USB charging” in the true sense. All this is, and I have a few of these, is a regular charger with a USB plugin instead of a typical electrical plug in. The charger to camera connection is unchanged. What this gets you is arguable, as you can easily purchase (for a lot less $$$) a right angle plug to replace the cord.

    A real “USB charging” camera allows you to leave the battery in the camera and simply connect a cable to a USB slot on the camera. A smaller(er) charger is configured as a electrical plug. The Sony has this.

    Reply
    • Josh Lehrer

      David, I certainly understand what you mean but I have found these chargers personally very handy. They are less expensive than the Leica brand chargers, provide more detailed information about the battery and allow me to easily charge from a USB power pack. Plus they are smaller and lighter. The angled plug connectors for the Leica chargers are definitely useful, but they do not give me the same level of functionality that the Nitecore chargers do. I’m not sure if I’d plug my camera into USB to charge too often, since usually I am using it, and prefer to have a spare battery charging separately, out of the way!

      Reply
  3. Chuck Albertson

    Josh, I’ve been using Nitecore chargers for the past year ot two (for MM, Nikon D750, and SL), and they’re quite good. They are very lightweight, made of pretty tough plastic and are packable, so I use them a lot for travel but also around home.

    Besides all the USB charging devices that abound, I use a solar panel (the Goal Zero Plus Nomad 28, a 28-watt panel that packs up well and weighs about 3 pounds) a lot of the time. It can directly charge a SL batt in a Nitecore charger in about two hours in bright sunlight – we’ve had some of that this summer in Seattle! You can also daisy-chain one of their storage batts (I use the Flip10 and Flip20, either of which can later charge a SL batt) with a battery charge off the panel. I haven’t tried it on cloudy days, as they’re generally rainy as well around here.

    Reply
  4. Vladimir

    An excellent battery charger, I have been using it charging my SL battery when travelling and in my car.

    Reply
  5. Mike Rosenberg

    Just want to give you a heads up on the nitecore charger for the Leica sl.it does not charge the battery to 100 percent.the readout of the bars is at max,it reads good and end comes on.then if you charge the battery in the Leica charger it charges the battery for another 15mins approx.to 100 percent.i was not able to shoot for about 4 days.so when I went to charge my battery on the nitecore the readout was good,bars at max and end came on.this is how I know it was not at 100 percent charged.so I charged the battery in the Leica charger and about 15mins.later the battery was at 100 percent.i love the nitecore for the readout on the battery health and using it in the field with my portable battery charger.but if you want your batteries to be at 100 percent charged you need to use the Leica charger.so what I do now is use the nitecore for the readout on battery health.then use the Leica charger to charge the battery up to 100 percent.i think the nitecore does about 85 percent approx.

    Reply
